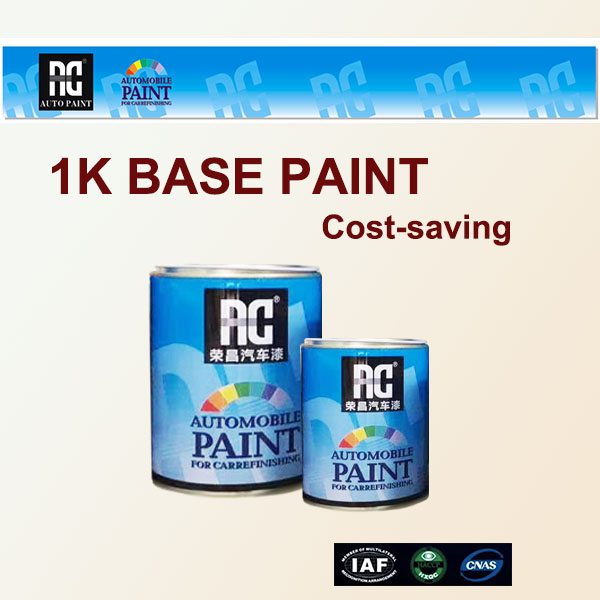

Name: Car Paint-1K Base Paint
1K Series Paint
■ Summary
1K base paint system is double-process coating system refers to spray finish paint before spray varnish.
With different technology level, film performance,there's a big difference in appearance and gloss.
Therefore, the highest level of technology is required The latest coating system.
This system can be used in new cars,
High gloss, luxurious appearance, etc
Most prominent.
RC paint can not be used alone, with varnish can be used.
Coating pressure and diluent selection play an important role in coating quality,
Ensure the highest quality should comply with the precautions.
■ Characteristics
Content Project
Mix ratio (main agent:diluent 1:0.8~1(volume ratio) )
14 16 seconds Diluted viscosit
15℃ Fire
20 30 um Dry film thickness (D.F.T)
30～50 Gloss(60")
10 In 20 minutes,within 18 hours Dry naturally(varnish painting time/25℃)
■Mixed
1.Stir the RC paint fully before mixing.
2.RC paint 1 part and T860K/860B/860M 1 part mix according to volume ratio.
■Choose different diluents at different temperatures (Thinner Recommendation)
T860K 5~15℃
T860B 15~28℃
T860M 28~38℃
■ Painting
1. air pressure of the spray gun is adjusted to 4 air pressure.
2.Maintain 20~25cm distance between spray gun and substrate,spray 3 to 4 times (reach covering effect)
Spray interval is 5~10minutes.
The best thickness of dry film is 20~30μm.
3.Clean the spray gun with diluent immediately after coating.
